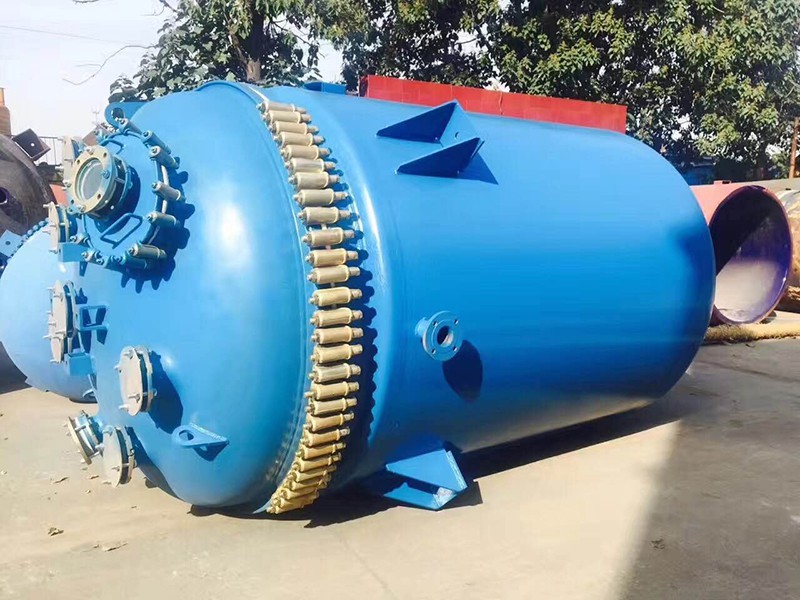

High Quality Glass Lined Reaction Tank

Today we will introduce the commonly used types of enamel stirrers for high quality glass lined reaction tank. Let's take a look together!

1. The inclined blade agitator of this type can be made with an inclination angle of 30 °, 45 °, or 60 °, with axial and radial flow diversion. The flow pattern is more complex than that of the straight blade agitator, and the discharge performance is also higher than that of the straight blade agitator. The comprehensive effect is better, so the frequency of use is higher than that of the straight blade agitator.

2. Anchor agitator: This type of agitator is a variation of the straight bladed propeller type, with the rotating surface of the propeller base close to the elliptical surface of the container, acting as a scraper. It operates at low speeds and can operate in transitional or laminar flow zones.
3. Frame mixer: This type of mixer is a slow speed mixer. Often operated in laminar flow state. Generate horizontal circumferential flow, and if it is a folded blade or angle steel blade, it can increase the vortex near the blade. Vertical blades and crossbeams can be added to the paddle as needed to change the mixing range.
4. Three bladed axial flow agitator is a typical axial flow agitator with low shear performance. When using baffles or guide vanes, the axial circulation is stronger and the discharge performance can be improved because of its strong circulation ability and low power consumption. It has advantages in large capacity mixing processes and is widely used in low viscosity liquid heat transfer, reaction, suspension, dissolution and other processes when the solid-liquid ratio is small.
5. Common types of enamel stirrers for high quality glass lined reaction tank are anchor stirrers. This type of stirrer is a slow speed stirrer that is suitable for mixing, heat transfer, or reaction processes of medium to high viscosity liquids.
The above introduces the commonly used types of enamel stirrers for high quality glass lined reaction tank. In fact, we can see that there are quite a few types of enamel stirrers commonly used for high quality glass lined reaction tank.
